TUNGALOY

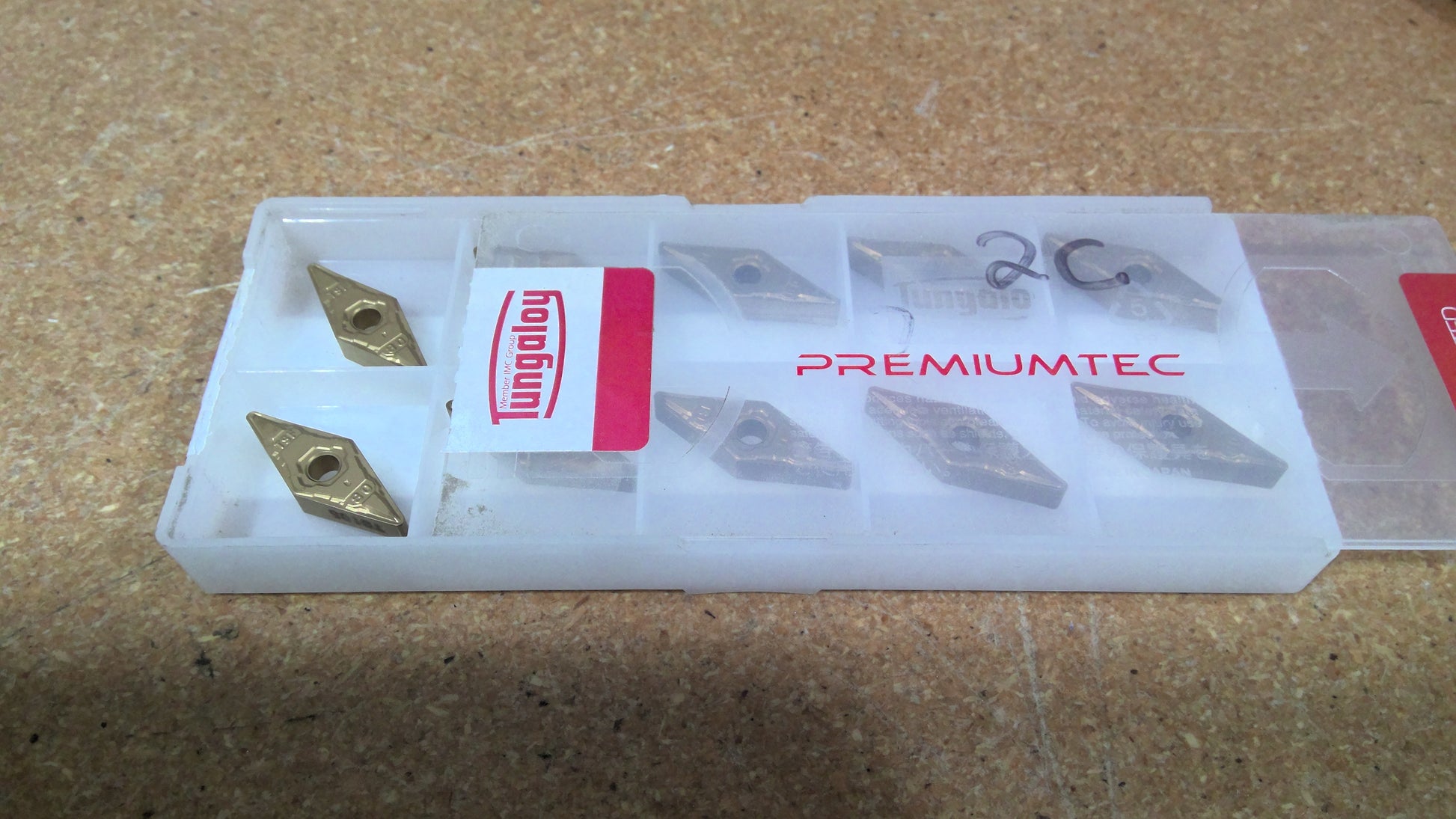

TUNGALOY AMERICA INC. - VNMG332TSFT9105 - CARBIDE INSERTS - PACK OF 10
TUNGALOY AMERICA INC. - VNMG332TSFT9105 - CARBIDE INSERTS - PACK OF 10
Regular price
$70.00 CAD
Regular price
Sale price
$70.00 CAD
Unit price
/
per
Couldn't load pickup availability
TUNGALOY VNMG 332 TSF T9105 Diamond Turning Insert, Neutral, 3/16 Inch Thick, 1/32 Inch Corner Radius
Specifications
| Item | Turning Insert |
|---|---|
| Ansi Code | VNMG 332 TSF T9105 |
| Chip-breaker | Yes |
| Chip-breaker Code | TSF |
| Clearance Angle | 0° |
| Corner Radius | 1/32" |
| Cutting Application | Finishing |
| Cutting Depth | 0.059" |
| Cutting Direction | Neutral |
| Finish - Machining | Ticn+Al2O3+Tin |
| Included Angle | 35° |
| Inscribed Circle | 3/8" |
| Insert Code | VNMG332 |
| Insert Holding Type | Straight Hole |
| Insert Style | VNMG |
| Manufacturer Grade | Grade T9105 |
|---|---|
| Material | Carbide |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Number Of Cutting Edges | 4 |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Rake | Negative |
| Secondary Material Application | Cast Iron |
| Secondary Material Application Iso Code | K |
| Shape | Rhombic |
| Standards | ISO 26623-1 |
| System Of Measurement | Imperial |
| Thickness | 3/16" |
