TECHNIKS

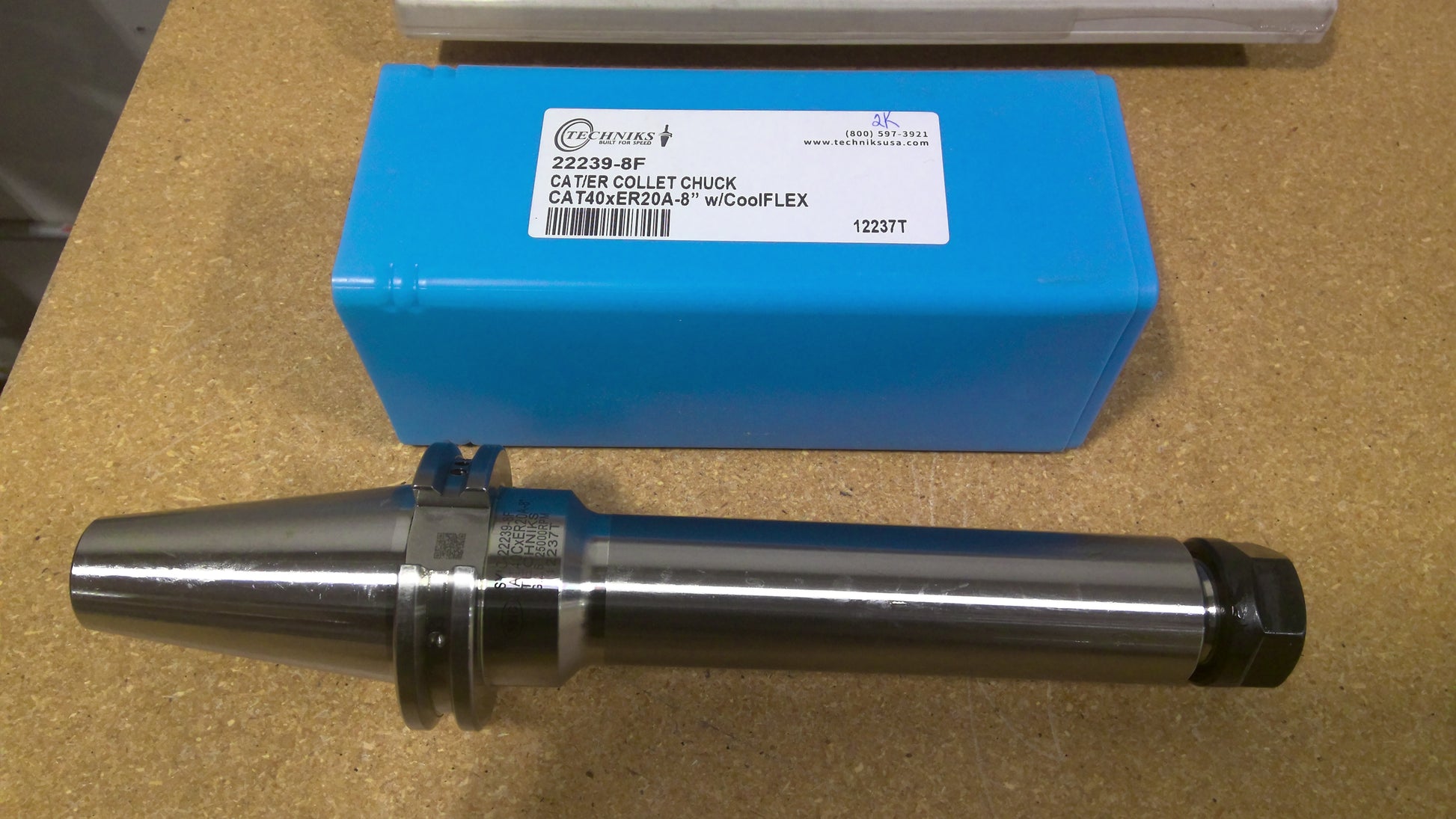

TECHNIKS - 22239-8 - CAT 40 X ER 20-8 COLLET CHUCK
TECHNIKS - 22239-8 - CAT 40 X ER 20-8 COLLET CHUCK
Regular price
$148.10 CAD
Regular price
Sale price
$148.10 CAD
Unit price
/
per
Couldn't load pickup availability
Item Number - 22239-8
Item Description - CAT40 Collet Chuck x ER20 - 8" projection
Taper - CAT40
Body Dia. - 1.75"
Shank Size - 2.5"
Weight - 4.3
Collet series - ER20
Taper length - 2.69"
Nose dia. - 2.5"
Projection Length - 8"
Techniks Tool Group Collet Chucks are designed to deliver excellent performance in a wide range of machining applications including milling,drilling,and tapping. Our exclusive PowerCOAT nuts come standard on all ER and TG Collet Chuck providing 75% more holding power on the tool shank vs. standard collet nuts for improved safety and reduce the potential of tool slippage. Both through-spindle and CoolFLEX AD+B flange coolant delivery are available.
DualDRIVE collet chucks are designed to work with dual-contact spindles to provide superior rigidity under heavy side loads. Extended gage lengths are available for long reach applications such as machining on horizontal machining centers.
Super Rigid collet chucks have a very short gage lengths are an excellent choice when Z-axis stroke is limited. Mini nuts are available to reduce nut overhang when machining in tight areas such as mold & die machining or medical parts manufacturing.
DualDRIVE collet chucks are designed to work with dual-contact spindles to provide superior rigidity under heavy side loads. Extended gage lengths are available for long reach applications such as machining on horizontal machining centers.
Super Rigid collet chucks have a very short gage lengths are an excellent choice when Z-axis stroke is limited. Mini nuts are available to reduce nut overhang when machining in tight areas such as mold & die machining or medical parts manufacturing.
- Balanced to 25,000 RPM at G2.5
- Maximum 0.0001" T.I.R. measured from taper to collet pocket
- PowerCOAT Nut increases holding power by 75%
