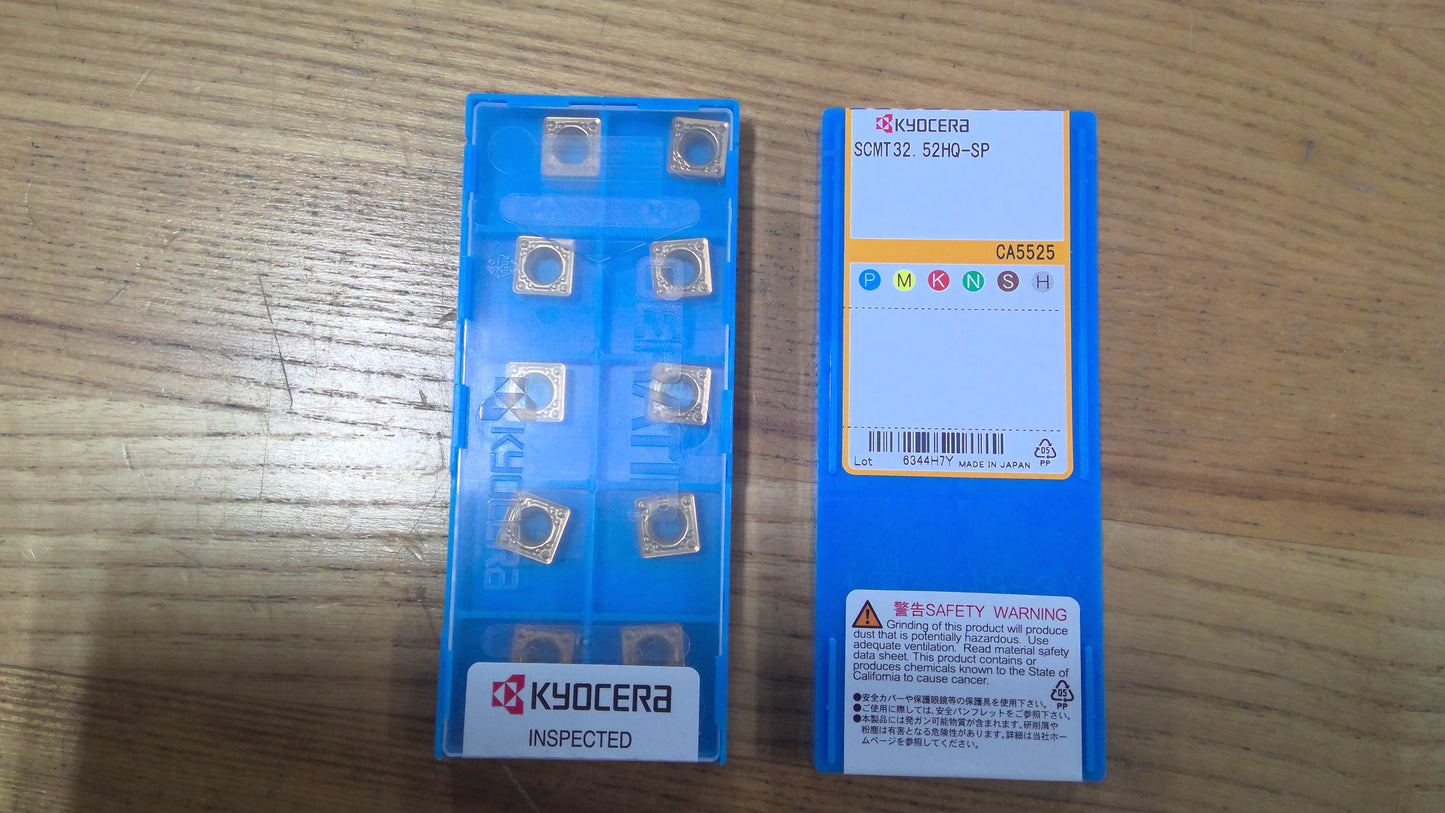

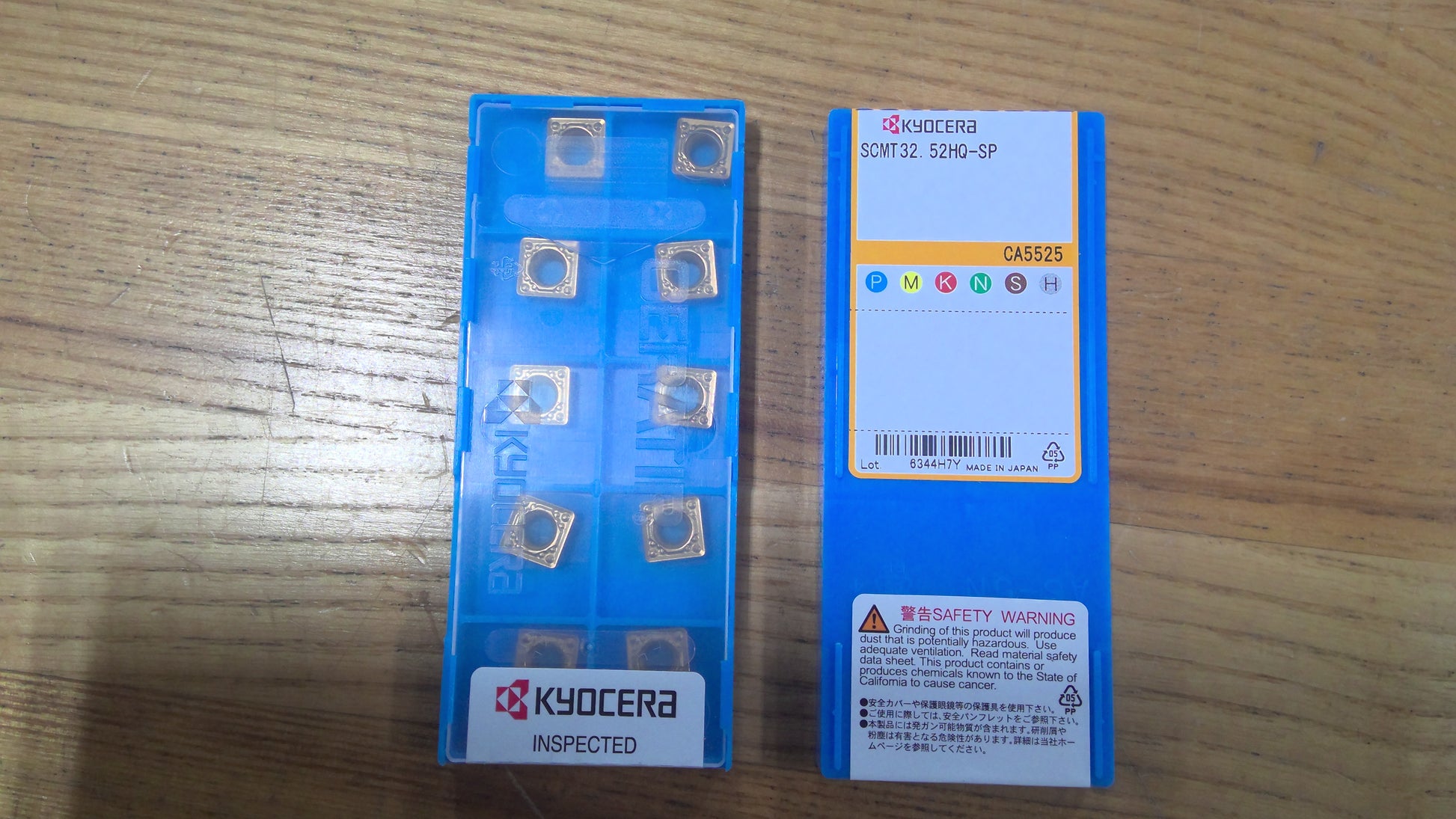

KYOCERA - SCMT3252HQSPCA5535 - CARBIDE INSERTS - PACK of 10
KYOCERA - SCMT3252HQSPCA5535 - CARBIDE INSERTS - PACK of 10
Regular price
$38.00 CAD
Regular price
Sale price
$38.00 CAD
Unit price
/
per
Couldn't load pickup availability
KYOCERA SCMT3252HQCA5535 ISOI 4-Cutting Edge Indexable Turning Insert With 1-Sided Chip breaker, Hole and 40 to 60 deg Countersink, ANSI Code: SCMT3252HQCA5535, SCMT Insert, Material Grade: P, #3252 Insert, Square Shape, 09 Seat, Positive Rake, Carbide.
Specifications
| ANSI Code | SCMT3252HQCA5535 |
| Chipbreaker | HQ |
| Corner Radius | 0.0315 in |
| Cutting Direction | Neutral |
| Finish | CVD-TiCN/Al2O3/TiN Coated |
| For Use On | Carbon/Alloy Steel |
| Hole Diameter | 0.1732 in |
| Included Angle | 90 deg |
| Inscribed Circle | 3/8 in |
| Insert Size | #3252 |
| Insert Style | SCMT |
| ISO Code | SCMT09T308HQ |
| Manufacturer's Grade | CA5535 |
| Material | Carbide |
| Material Grade | P |
| Rake | Positive |
| Relief Angle | 7 deg |
| Seat Size | 09 |
| Series | ISOI |
| Shape | Square |
| Thickness | 0.1563 in |
| Type | 4-Cutting Edge |
