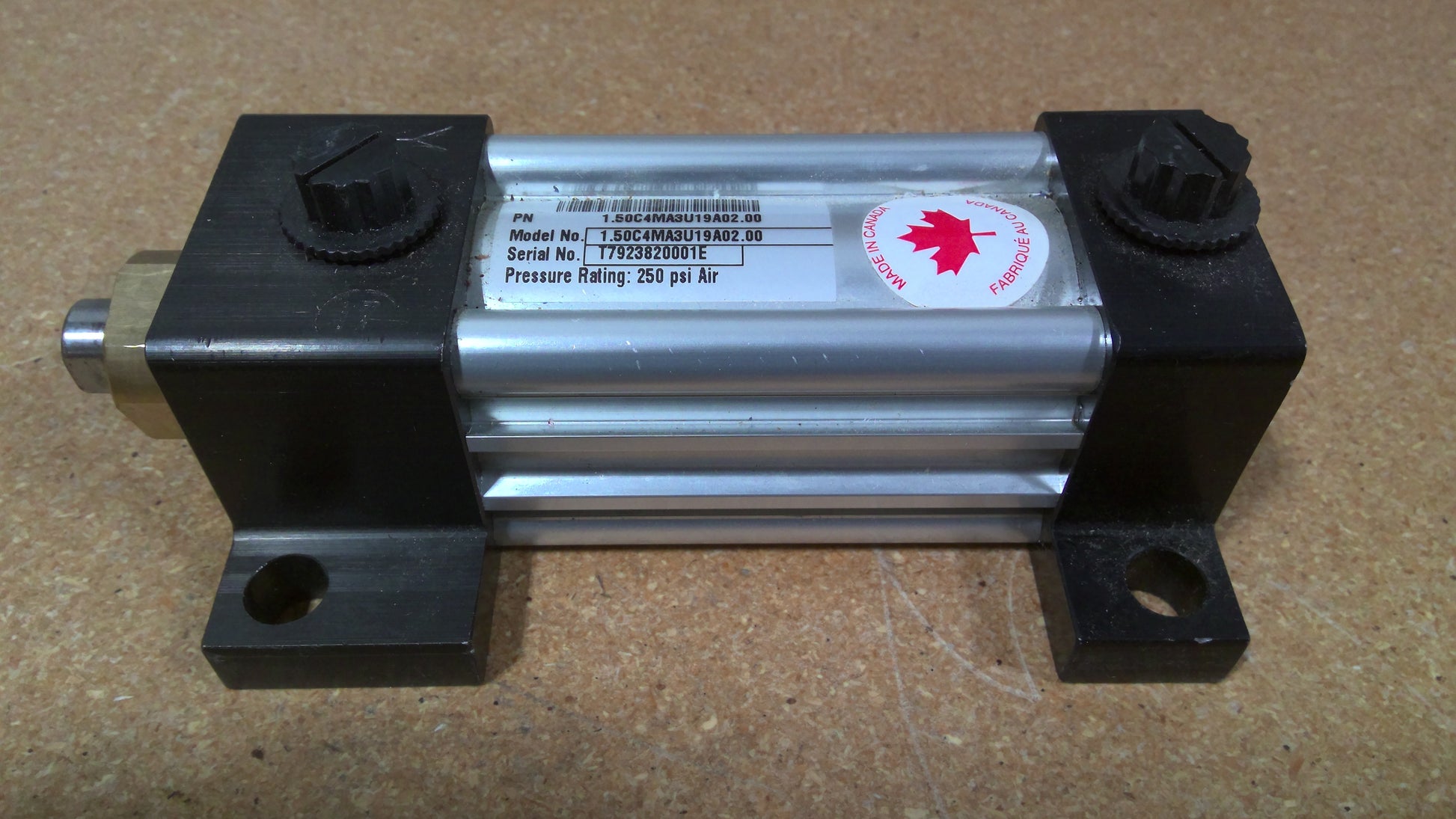

PARKER - 4MA CYLINDER - 1.504MA3U19A2 4MA AIR CYLINDER 1.50 X 2
PARKER - 4MA CYLINDER - 1.504MA3U19A2 4MA AIR CYLINDER 1.50 X 2
Regular price
$120.00 CAD
Regular price
Sale price
$120.00 CAD
Unit price
/
per
Couldn't load pickup availability
The 4MA is a ruggedly constructed all purpose cylinder. The aluminum body and end caps make the 4MA a light weight solution. With 8 bore sizes, 20 NFPA mounting styles, and a variety of specials and options it's highly configurable and easily adaptable.
Technical Specifications
| Cylinder Type: | Non-Guided, Through Rod, Extended Piston Rod |
| Cylinder Action: | Double Acting |
| Bore Diameter: | 1-1/2 to 8 inch |
| Maximum Stroke Length: | 3556 mm or up to any practical stroke length., 140 inch, or up to any practical stroke length. inch |
| Extend Stroke Force: | -, 176 to 5027 lbs (at 100 psi) |
| Retract Stroke Force: | -, 146 to 4878 lbs (at 100 psi) |
| Cushioning Type: | Brass Needle |
| Port Size: | 3/8 to 3/4" NPT, Rc3/8 to Rc3/4 BSPT, G 3/8 to G 3/4 BSPP, 6 to 12 SAE |
| Rod End Thread Type: | Male, Female |
| Maximum Operating Pressure: | 17 bar, 250 psi |
| Operating Temperature: | -46 to 121 °C, -50 to 250 °F |
| Position Sensing Type: | Externally Mounted |
| Mounting Option: | Yes |
| Specifications Met: | RoHS |
| Piston Rod Material: | Aluminum Alloy |
| Body Material: | Anodized Aluminum Alloy |
| End Cap Material: | Black Anodized Aluminum Alloy |
| Body Type: | Profile, Tie Rod |
| Corrosion Resistance Included: | Yes |
| Repairable: | Yes |
