MORSE CUTTING TOOLS

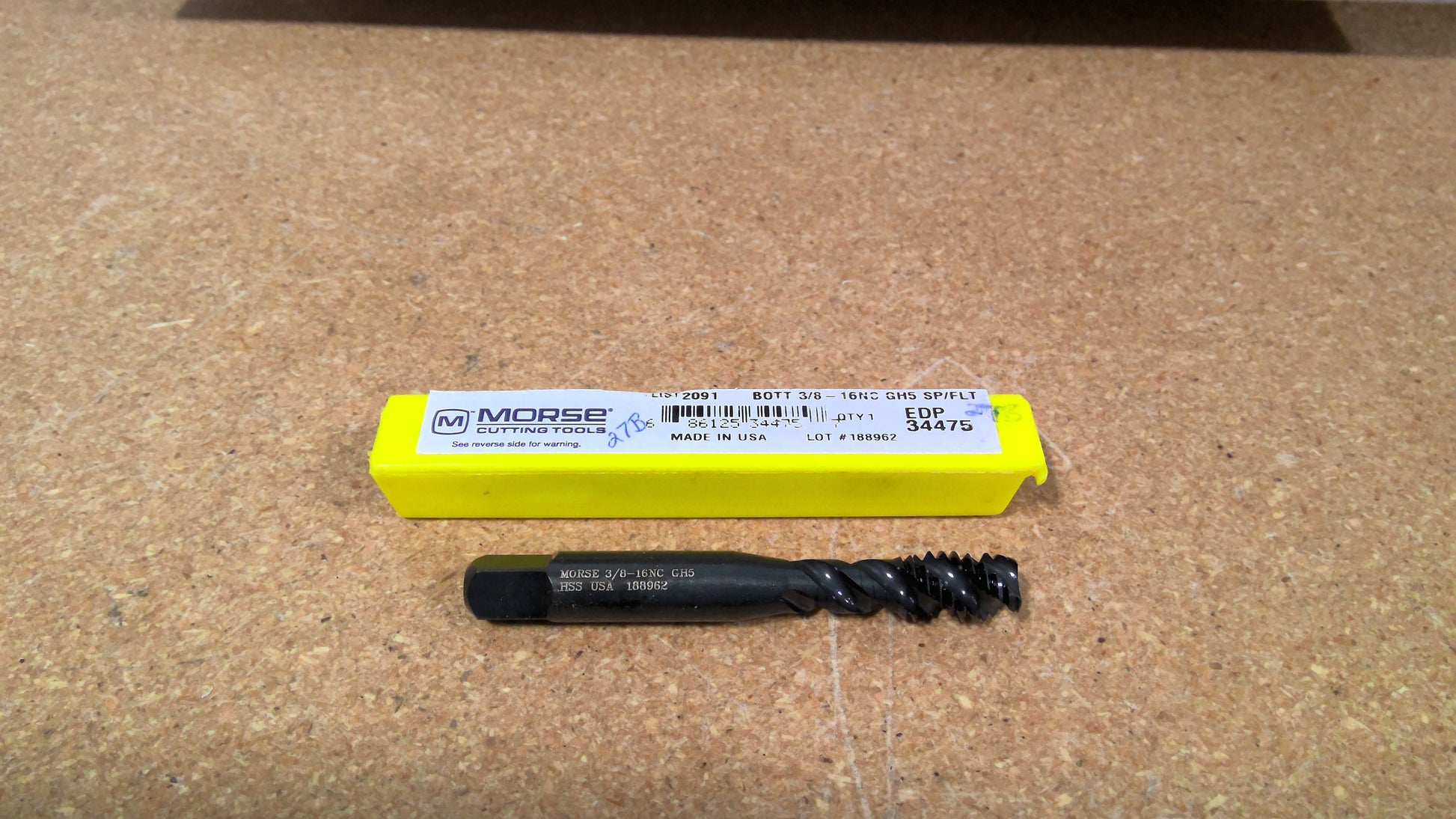

Morse Cutting Tools - 34475 - 3/8-16 H5 3 Flute Spiral Flute BTM Shear Tap
Morse Cutting Tools - 34475 - 3/8-16 H5 3 Flute Spiral Flute BTM Shear Tap
Regular price
$36.00 CAD
Regular price
Sale price
$36.00 CAD
Unit price
/
per
Couldn't load pickup availability
MORSE CUTTING TOOLS - 3/8-16 H5 3F SPFL BTM SHEAR TAP
| Thread Diameter Size (TDZ) | 3/8″ | Thread Tolerance Class (TCTR) | H5 |
| Threads per Inch (TPI) | 16 | Special Feature | ShearTap |
| Thread Standard | NC | Tool Type | Production Tap |
| Overall Length (OAL) | 2-15/16″ | Chamfer | Semi-Bottoming |
| Thread Cutting Part Length (THL) | 0.551″ | Coating | Black Oxide |
| Flute Count (NOF) | 3 | Flute Type | Spiral |
| Flute Helix Angle (FHA) | 48 Degrees | Style | Semi-Bottoming |
| Applicable Material | | Steel | Stainless Steel | | Measurement Type | Inch |
| Cutting Edge Material | HSS |
