KYOCERA

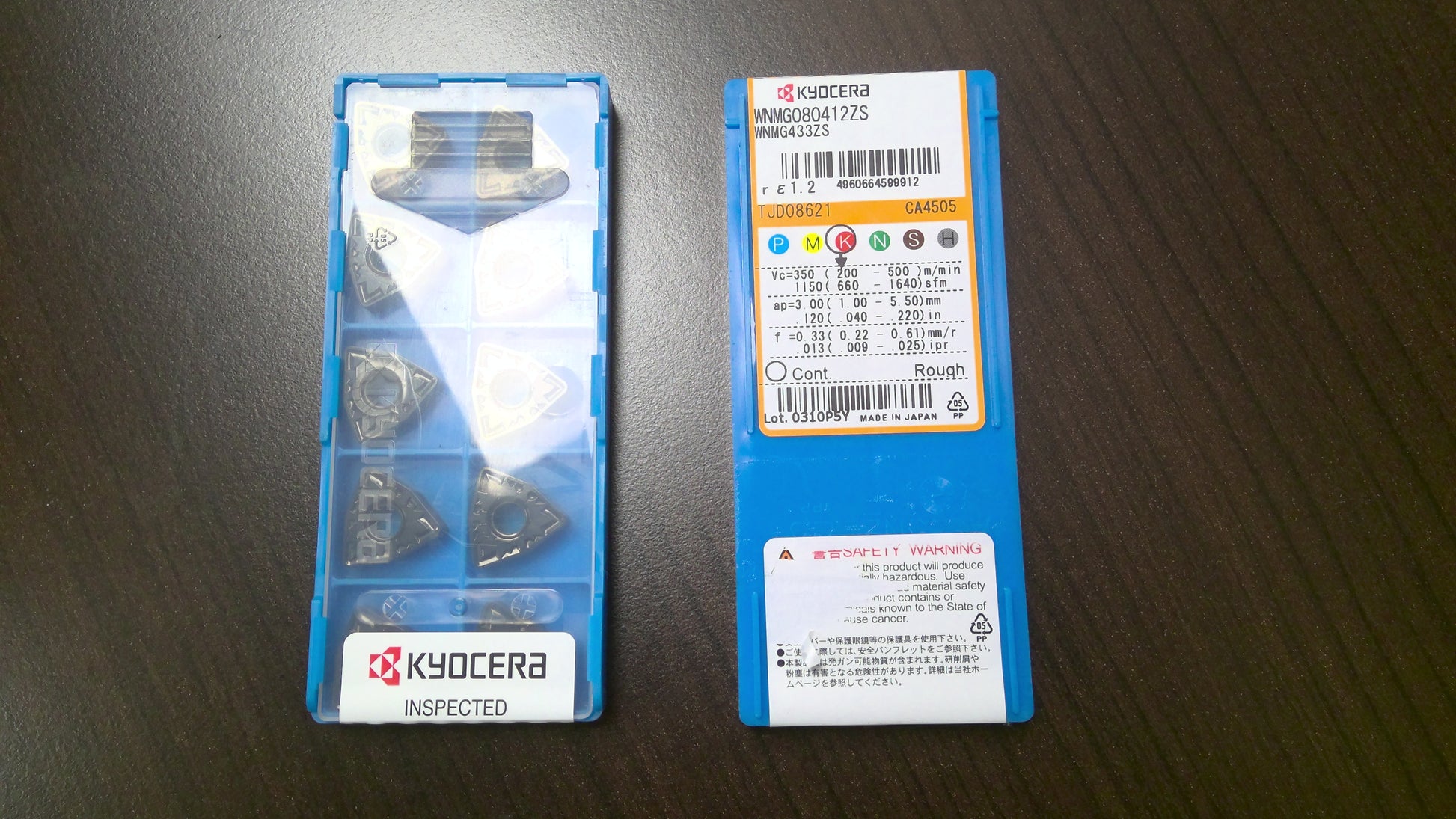

KYOCERA - WNMG433ZSCA4505 - CARBIDE INSERTS - PACK OF 10

Name: KYOCERA - WNMG433ZSCA4505 - CARBIDE INSERTS - PACK OF 10
Brand: KYOCERA
Price: 45.0 CAD
Availability: InStock

$45.00 CAD

Sale Sold out

Product variants

Quantity

Trigon Insert, 80°, CA4505

Kyocera WNMG 433ZS CA4505 Grade CVD Carbide, Indexable Turning Insert

Part Number: 8831516

EDP: TJD08621

Designation: WNMG433ZSCA4505

Description: Kyocera WNMG 433ZS CA4505 Grade CVD Carbide, Indexable Turning Insert

Coating: TiCn/al2O3

Grade: CA4505

Hand: Neutral

RE Corner Radius: 0.0472

EPSR Insert Included Angle: 80

SC Insert Shape Code: 80 Degree Trigon

IC Inscribed Circle Diameter: 0.5

S Insert Thickness: 0.1874

CEDC Cutting Edge Count: 6

Insert Holding Method: Screw or Clamp

Application: Boring|External Turning|Facing|Internal Facing

Material: Carbide

Chipbreaker: ZS

Coating Process: CVD

Insert Style: WNMG

Insert Size: 433

Usage Classification: Continuous

Rake: Negative

Series: ISOI

Primary Workpiece Material: (K) Gray Cast Iron|(K) Nodular Cast Iron
