KYOCERA

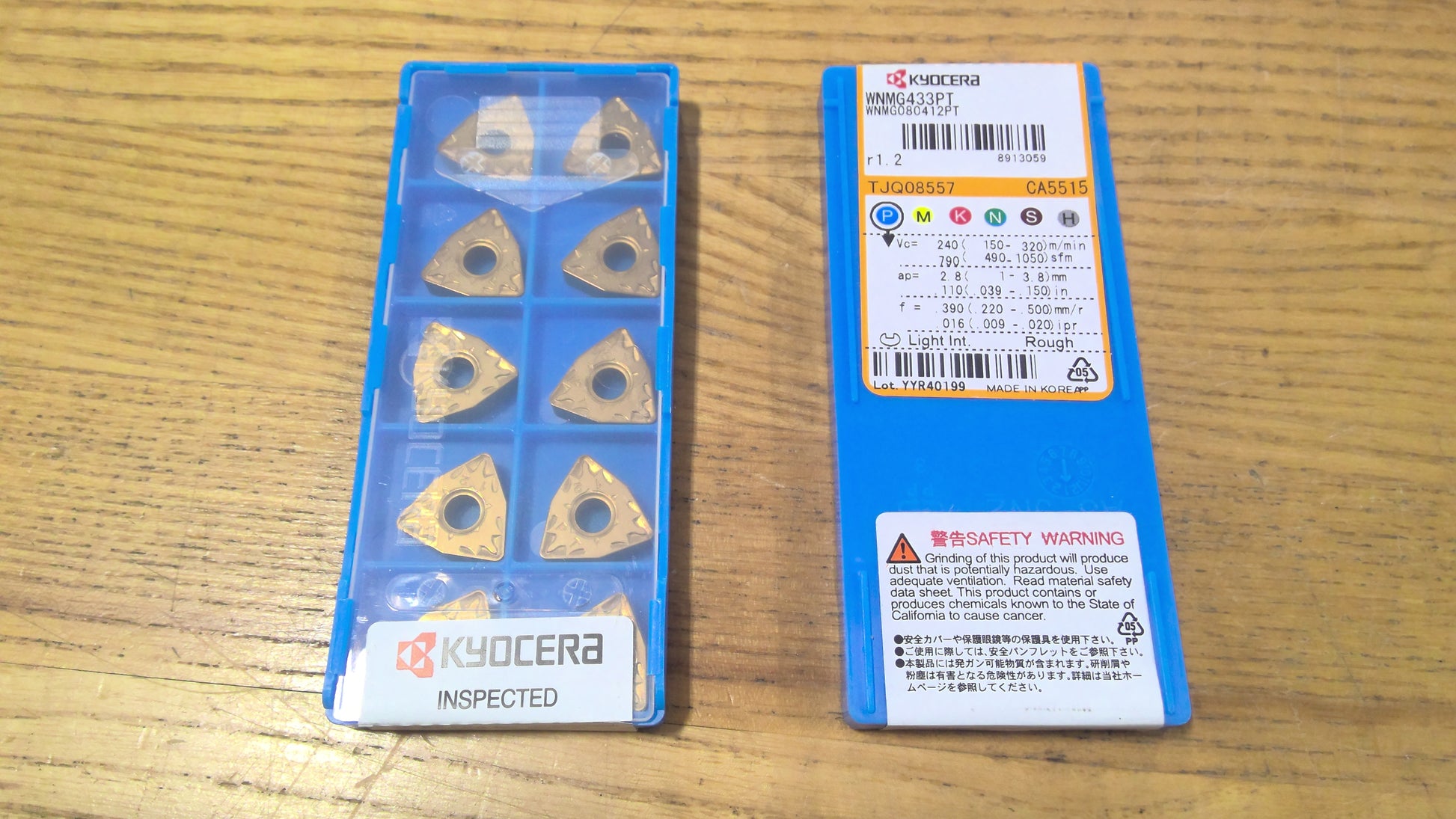

KYOCERA - WNMG433PTCA5515 - CARBIDE INSERTS - PACK OF 10
KYOCERA - WNMG433PTCA5515 - CARBIDE INSERTS - PACK OF 10
Regular price
$40.00 CAD
Regular price
Sale price
$40.00 CAD
Unit price
/
per
Couldn't load pickup availability
WNMG 433 PT CA5515, 3/64″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, TiC2O3/TiN, Trigon, Turning Indexable Insert
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Grade | CA5515 |
| Application | External Turning | Facing | Boring | Internal Facing |
| Fixing Hole Diameter (D1) | 0.2031″ |
| Insert Style | WNMG |
| Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 3/64″ |
| Number of Cutting Edges | 6 |
| Insert Size | 433 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ |
| Chip Breaker Type | PT |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Shape | Trigon |
| Cutting Edge Material | Carbide |
| Series/List # | CA55-Series |
| Coating | TiC2O3/TiN |
