• KYOCERA - WNMG433PQCA525 - CARBIDE INSERTS - PACK OF 10
1 1

KYOCERA

KYOCERA - WNMG433PQCA525 - CARBIDE INSERTS - PACK OF 10

KYOCERA - WNMG433PQCA525 - CARBIDE INSERTS - PACK OF 10

$40.00 CAD
$40.00 CAD
Sale Sold out

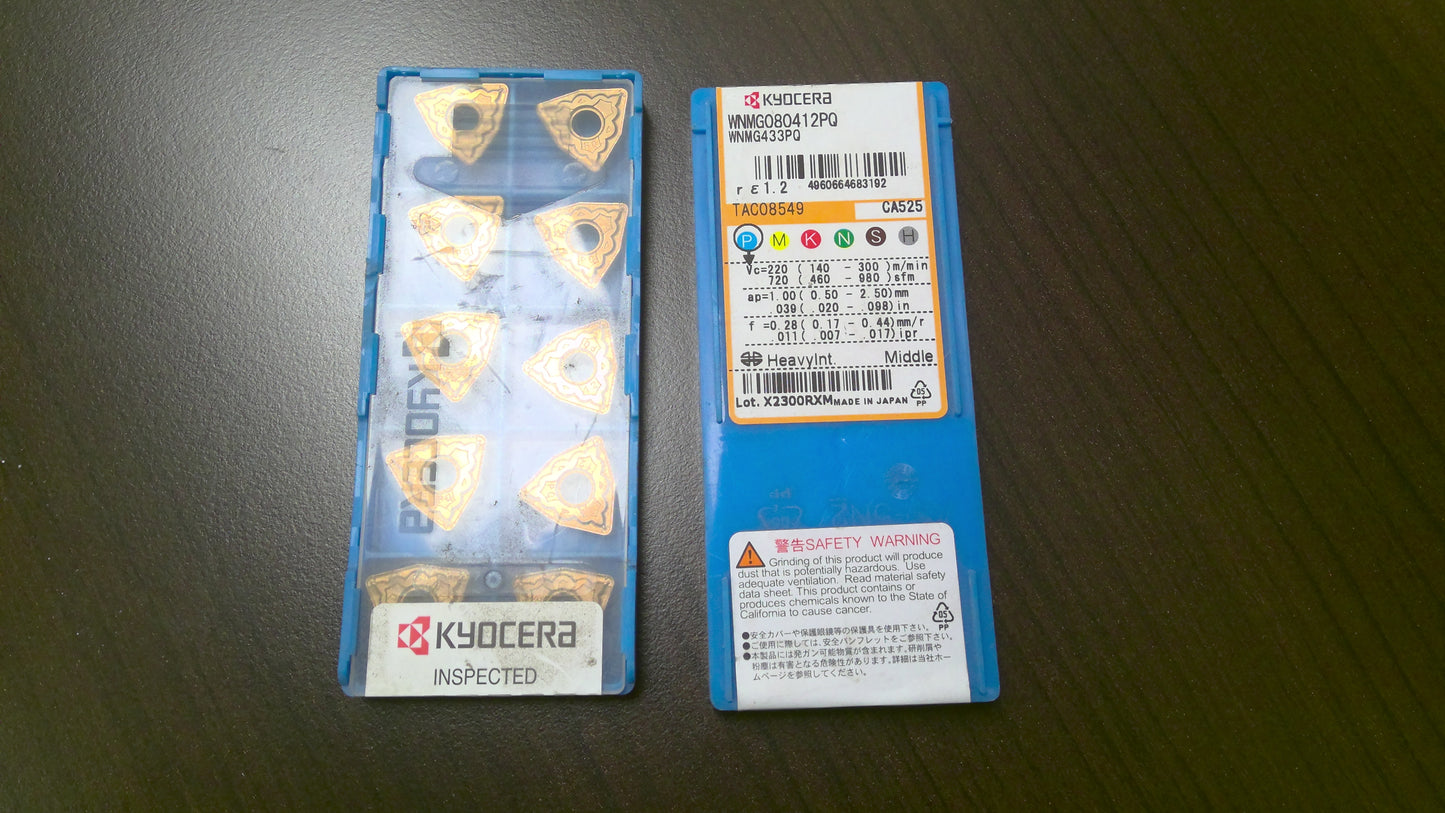

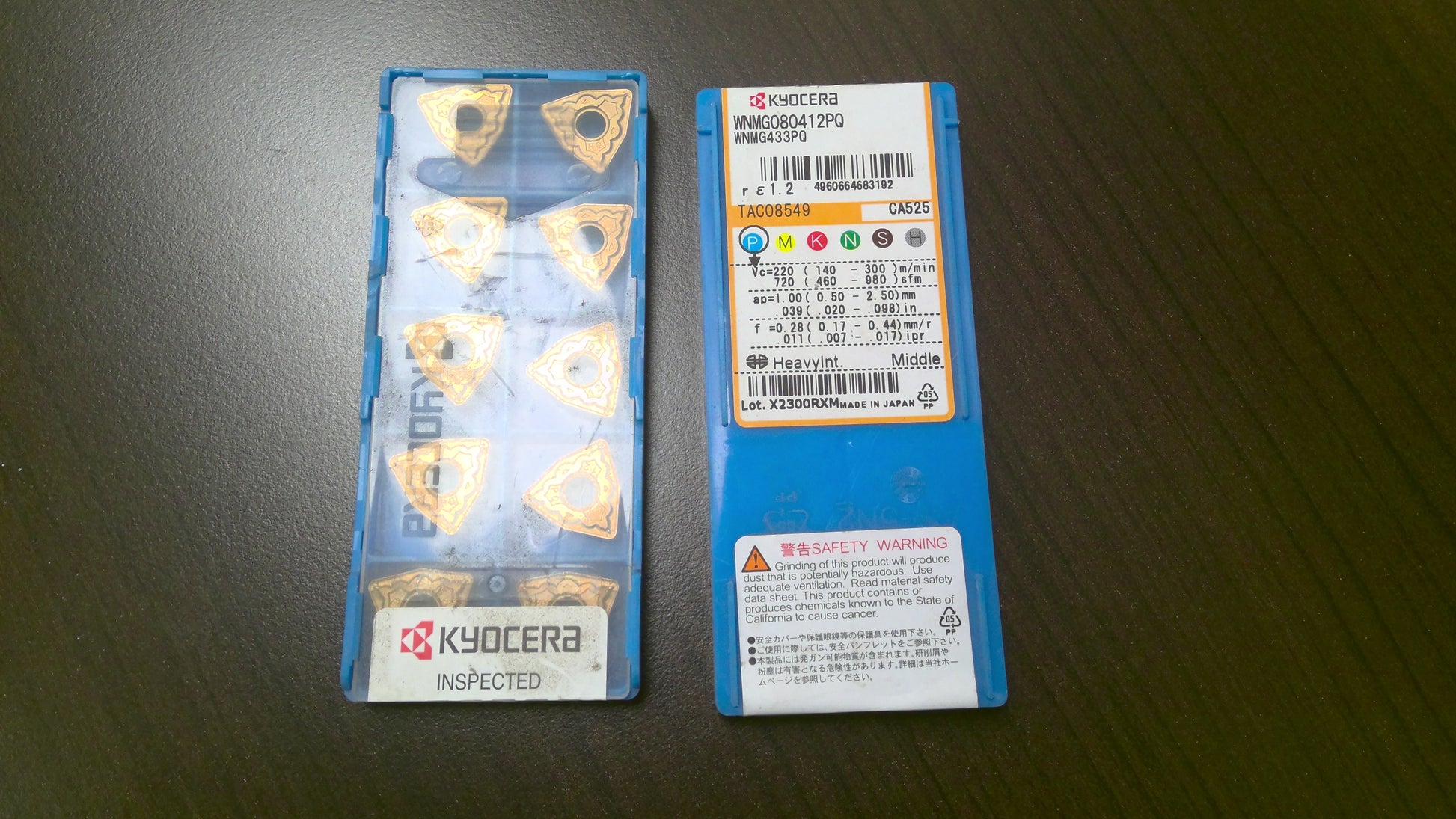

WNMG433PQ CA525 Grade CVD Carbide, Indexable Turning Insert For Boring, External Turning, Facing, Internal Facing

WNMG 433PQ CA525 Grade CVD Carbide, 0 Degree, Trigon, Negative Rake Angle, Neutral Turning Insert For Light Interruption And Finishing-Medium In (P) Carbon/Alloy Steel

  • Insert for External Turning, Facing, Boring, Internal Facing
  • 6 Cutting Edges
  • Special substrate and tough coating film provides high wear and fracture resistance
  • Application: First choice for steel machining

Technical Details

Manufacturer - Kyocera Precision Tools
Manufacturer Part Number - TAC08549
ISO Part Number - WNMG080412PQ
ANSI Part Number - WNMG433PQCA525
Radius Size - 3/64"
Thickness - 3/16"
Material - Carbide
Tool Coating - CVD
Primary Application - Boring | External Turning | Facing | Internal Facing
Hand - Neutral
Included Angle - 80
Country of Origin - Japan
Grade - CA525
Series - ISOI
Style - WNMG
Size4 - 433
Shape - 80 Degree Trigon
Type - Turning
Inscribed Circle - 1/2"
Chip Breaker - PQ
View full details
