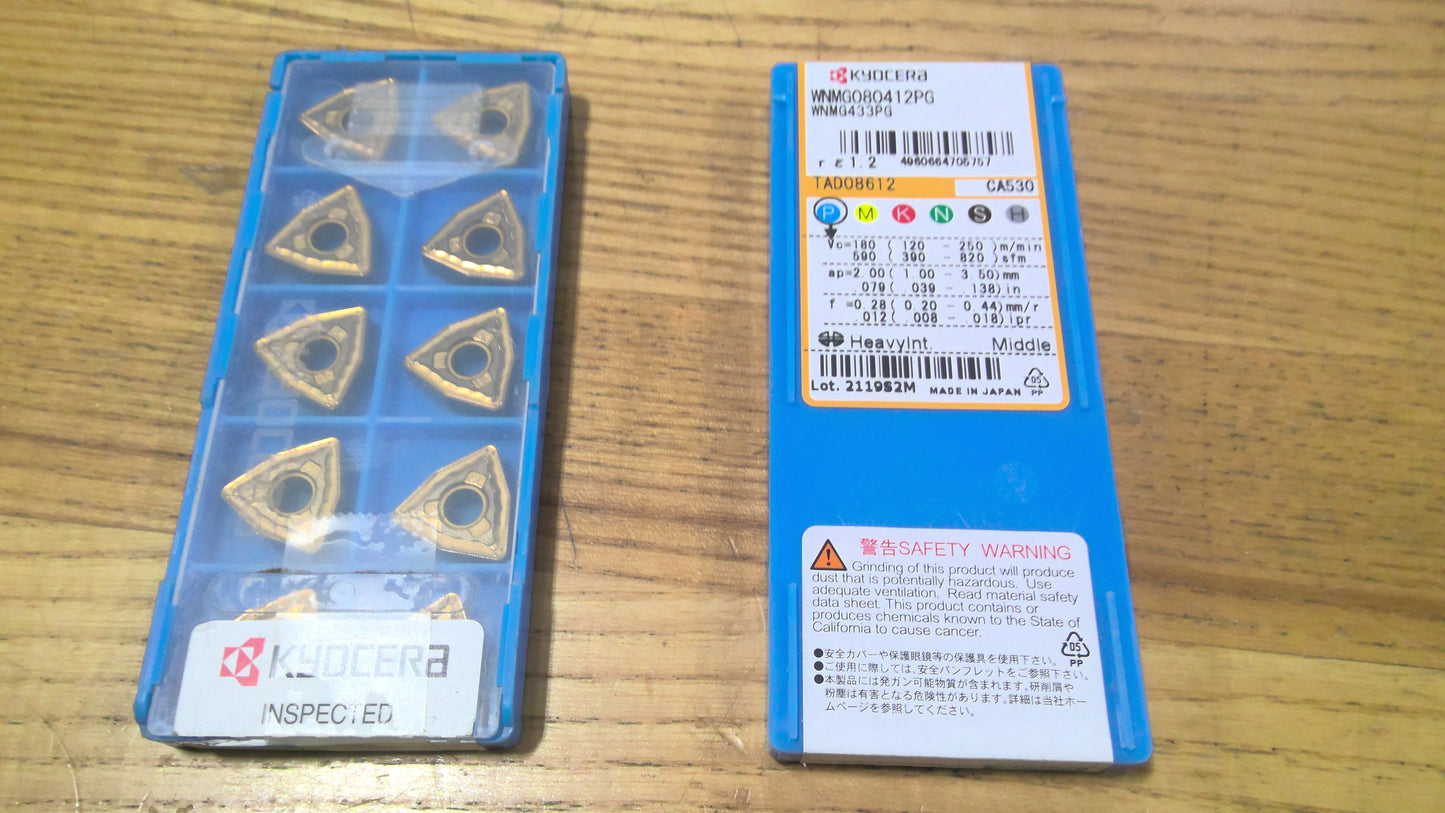

KYOCERA - WNMG433PGCA530 - CARBIDE INSERTS - PACK OF 10

Name: KYOCERA - WNMG433PGCA530 - CARBIDE INSERTS - PACK OF 10
Brand: KYOCERA
Price: 90.0 CAD
Availability: InStock

$90.00 CAD

Sale Sold out

Product variants

Quantity

KYOCERA Turning Insert: 1/2 in Inscribed Circle, Neutral, 3/16 in Thick, PG Chip-Breaker, CA530

Product Details

Brand - KYOCERA

Primary Material Application - Steel

Inscribed Circle - 1/2 in

Cutting Direction - Neutral

Thickness - 3/16 in

Corner Radius - 3/64 in

Chip-Breaker Code - PG

Clearance Angle - 0 °

Finish - Machining - TiCN+Al2O3+TiN

Insert Style - WNMG

ANSI Code - WNMG433PG CA530

ISO Number - WNMG080412PG

Number of Cutting Edges - 6

Chip-Breaker - Yes

Chip-Breaker Style - Double Sided

Coating Process - CVD

Cutting Application - Turning

Features - Crack Resistant; Wear Resistant

Feed Type - High

Included Angle - 80 °

Insert Holding Type - Straight Hole

Manufacturer Grade - CA530

Material - Machining - Carbide

Measurement System - Fractional Inch

Primary Material Application ISO Code - P

Rake - Negative

Shape - Trigon

Through Hole Inside Dia. - 0.2031 in

Insert Code - WNMG433

UNSPSC - 23171618

Country of Origin - Japan
