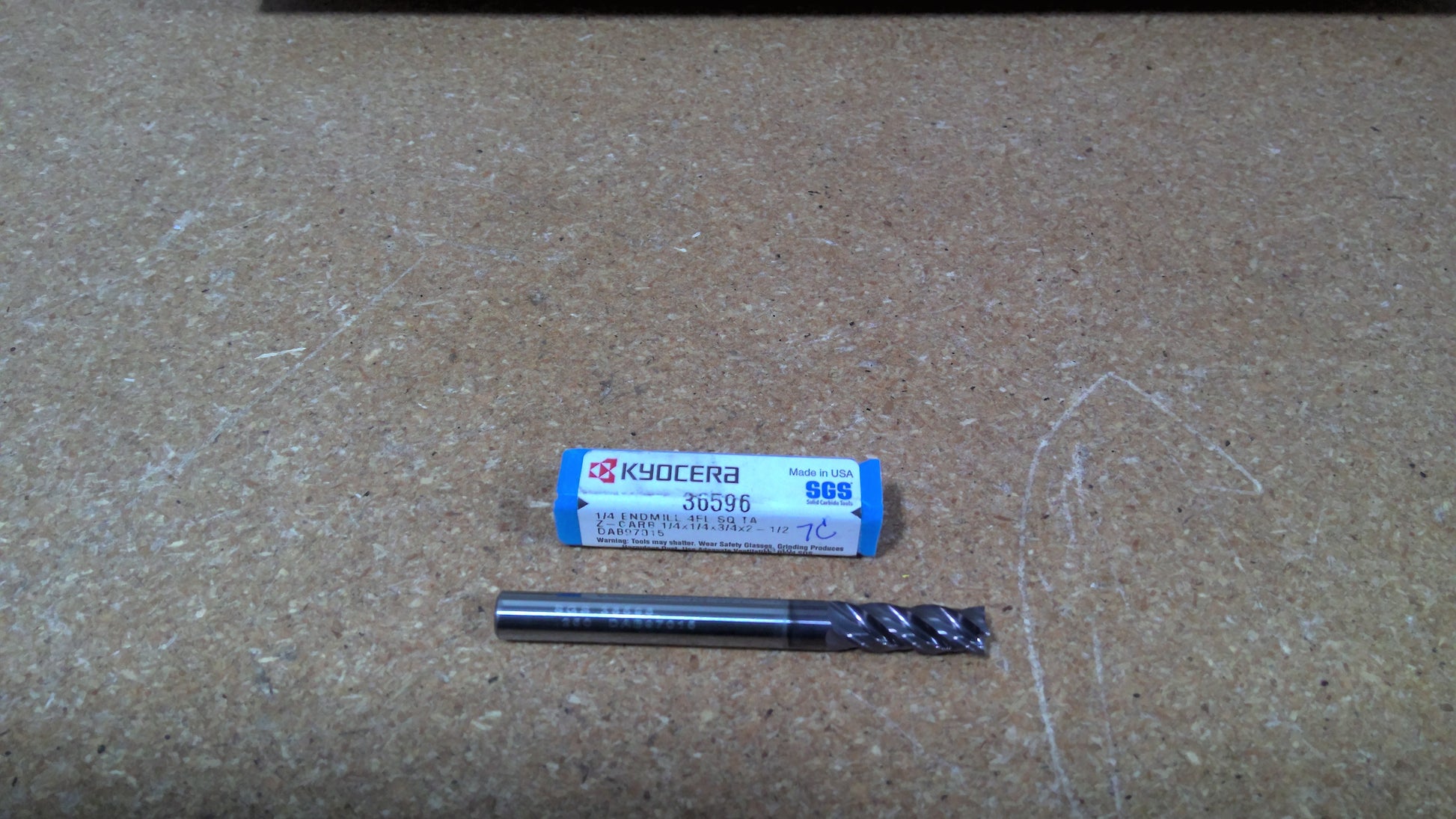

KYOCERA SGS - 36596 - 1/4 ENDMILL 4FL SQ TX

Name: KYOCERA SGS - 36596 - 1/4 ENDMILL 4FL SQ TX
Brand: KYOCERA SGS
Price: 50.0 CAD
Availability: InStock

$50.00 CAD

Sale Sold out

Product variants

Quantity

Feature & Benefits

Variable rake geometry alters and controls the cutting dynamic taking chatter suppression to an unprecedented level

Unequal helix design changes the cutting angle to improve harmonics

Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics

Enhanced corner geometry with tight tolerance corner radii

Recommended for materials ≤ 45 HRc (≤ 420 Bhn)

Series Description	Z-Carb
High Performance	Yes
End Configuration	Square End
Unit (inch/mm)	inch
Number of Flutes	4
Primary Workpiece Material	(P) Steel\|(M) Stainless Steel\|(K) Cast Iron\|(S) High Temp Alloy
Secondary Workpiece Material	(H) Hardened Materials
Cutting Diameter (DC) (Decimal Inch)	0.2500
Cutting Diameter (DC) (Fractional Inch)	1/4
Cutting Diameter (DC) (mm)	6.35
Shank Diameter (DCON) (Decimal Inch)	0.2500
Shank Diameter (DCON) (mm)	6.35
Length of Cut (APMX) (Decimal Inch)	0.7500
Length of Cut (APMX) (Fractional Inch)	3/4
Length of Cut (APMX) (mm)	19.05
Overall Length (LF) (Decimal Inch)	2.5000
Overall Length (LF) (Fractional Inch)	2-1/2
Overall Length (LF) (mm)	63.50
Shank Length (LS) (Decimal Inch)	1.7500
Shank Length (LS) (Fractional Inch)	1-3/4
Cutting Diameter (DC) Tolerance (Decimal Inch)	+0.0000/-0.0012

Cutting Diameter (DC) Tolerance (mm)	+0.000/-0.030
Shank Type	Straight
Coolant Option	External Coolant
Additional Geometry	Flute Spacing Unequal / Right Hand Cut Direction (RHC)
Rake Angle	Variable
Helix Angle	Variable Right Spiral
Helix Angle (Degree)	35-38
Variable Helix	Yes
Center Cutting	Yes
Chip Breaker	No
Shipping Weight	0.0550
Series	Z1S
