KYOCERA

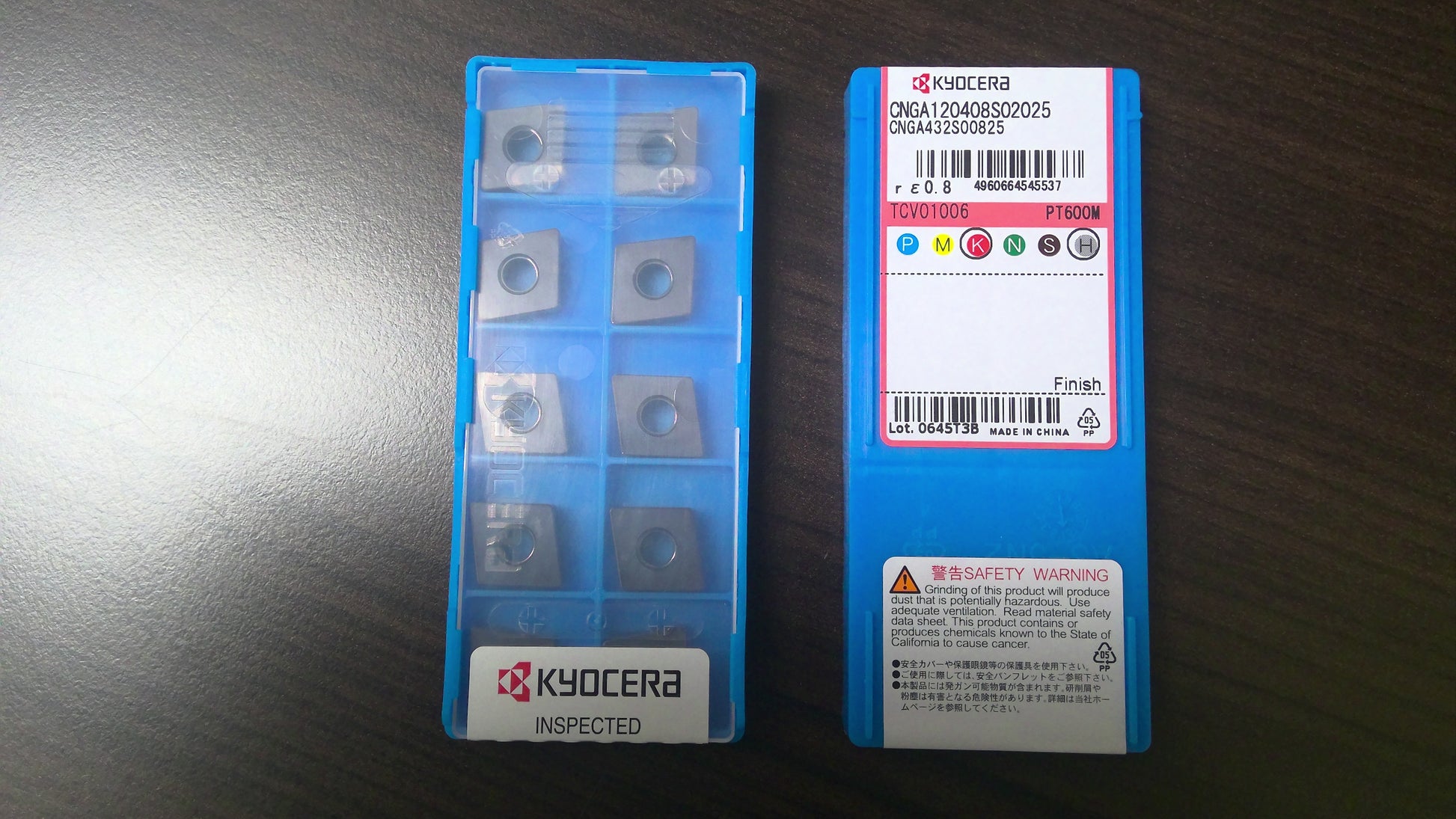

KYOCERA - CNGA433T00825PT600M - CERAMIC INSERTS - PACK OF 10
KYOCERA - CNGA433T00825PT600M - CERAMIC INSERTS - PACK OF 10
Regular price
$90.00 CAD
Regular price
Sale price
$90.00 CAD
Unit price
/
per
Couldn't load pickup availability
Specifications
| Insert Style | CNGA |
|---|---|
| Insert Size Code | 433 |
| Insert Shape | Diamond |
| Included Angle | 80 |
| Inscribed Circle (decimal Inch) | 0.5000 |
| Corner Radius (decimal Inch) | 0.0469 |
| Corner Radius (mm) | 1.19 |
| Insert Material | Ceramic |
| Manufacturer Grade | PT600M |
| Coating/finish | Al2O3; TiC |
| Relief Angle | 0 |
| Wiper Edge | No |
| Insert Thickness | 4.76 |
| Insert Thickness (decimal Inch) | 0.1875 |
| Insert Hand | Neutral |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | C |
| Corner Radius (inch) | 3/64 |
| Hole Diameter (mm) ( - 0 Decimals) | 5.16 |
| Hole Diameter (decimal Inch) | 0.2032 |
| Maximum Depth Of Cut (decimal Inch) | 0.1667 |
| Inscribed Circle (inch) | 1/2 |
| Inscribed Circle (mm) | 12.70 |
| Insert Holding Method | Pin; Clamp |
| Width (inch) | 1/2 |
| Insert Thickness (inch) | 3/16 |
| Clearance Code | N |
| Tolerance Code | G |
| Series | ISOI |
| Coating Process | PVD |
| Length Range (decimal Inch) | 0.5000 - 0.6000 |
| Rake | Negative |
| Insert Length (inch) | 1/2 |
| Insert Length (decimal Inch) | 0.5000 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Iso Code | CNGA120412T02025 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | TCV01012 |
| Material Grade | K10; K01 |
| Unspsc Code | 23242105 |
| Coating Classification | PVD |
| Cutting Edge Style | Chamfered |
| Industry Standard Number | CNGA433T00825PT600M |
| Width (decimal Inch - 4 Decimals) | 0.5 |
| Multi-use Tool | Yes |
| Full Radius | No |
| Multi-use Application | External Turning; Chamfering; Facing; Internal Facing; Boring |
