KYOCERA

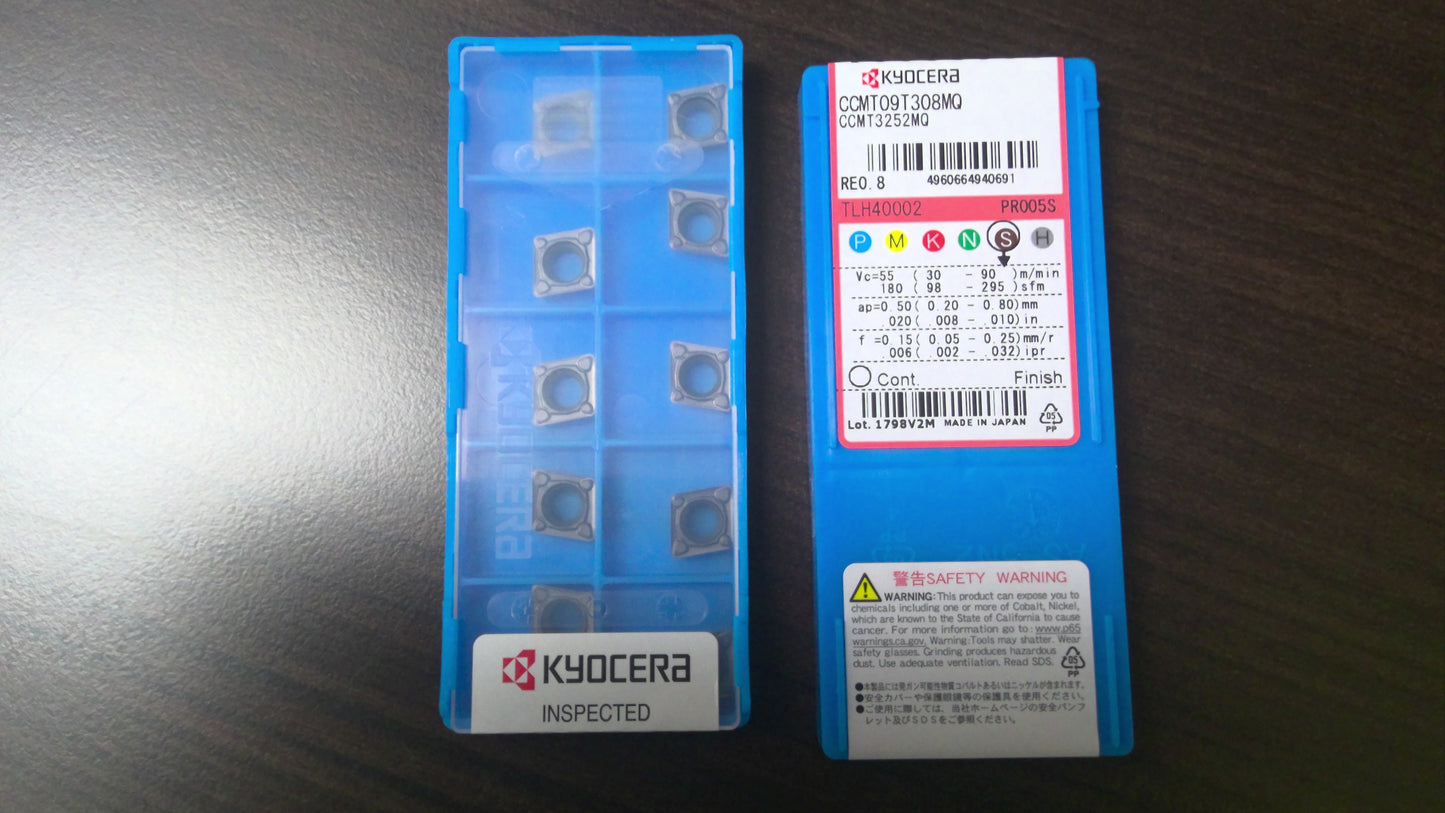

KYOCERA - CCMT3252MQPR005S - CARBIDE INSERTS - PACK OF 10
KYOCERA - CCMT3252MQPR005S - CARBIDE INSERTS - PACK OF 10
Regular price
$45.00 CAD
Regular price
Sale price
$45.00 CAD
Unit price
/
per
Couldn't load pickup availability
Kyocera Precision Tools TLH40002 | CCMT3252MQ PR005S 3/8" Circle Diameter x 5/32" Thickness PVD Coated Carbide Indexable Turning Insert
Features:
- Insert for external turning, facing, boring, internal facing
- Stainless steel/HRSA with 2 cutting edges
- Improved thermal conductivity by optimum distribution of WC coarse grains in the substrate
- Resists heat concentration at the cutting edge to promote stable machining
- Application: Hard, wear resistant grade for high-speed machining of continuous to light interrupted heat-resistant alloys
Product Specifications
| EDP Number | TLH40002 |
| Inscribed Circle (Inch) | 3/8" |
| Inscribed Circle (mm) | 9.525mm |
| Corner Radius (Inch) | 1/32" |
| Corner Radius (mm) | 0.80mm |
| Thickness (Inch) | 5/32" |
| Thickness (mm) | 3.97mm |
| Application | Boring | External Turning | Facing | Internal Facing |
| Chipbreaker | MQ |
| Coating Process | PVD |
| Cutting Range | Finishing Medium |
| Hand | Neutral |
| Insert Grade | PR005S |
| Insert Holding Method | Screw or Clamp |
| Insert Shape | 80 Degree Diamond |
| Insert Included Angle ( Degree) | 80 Degree |
| Insert Size | 3252 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Heat-Resistant Alloy (S) |
| Usage Classification | Continuous |
