KYOCERA

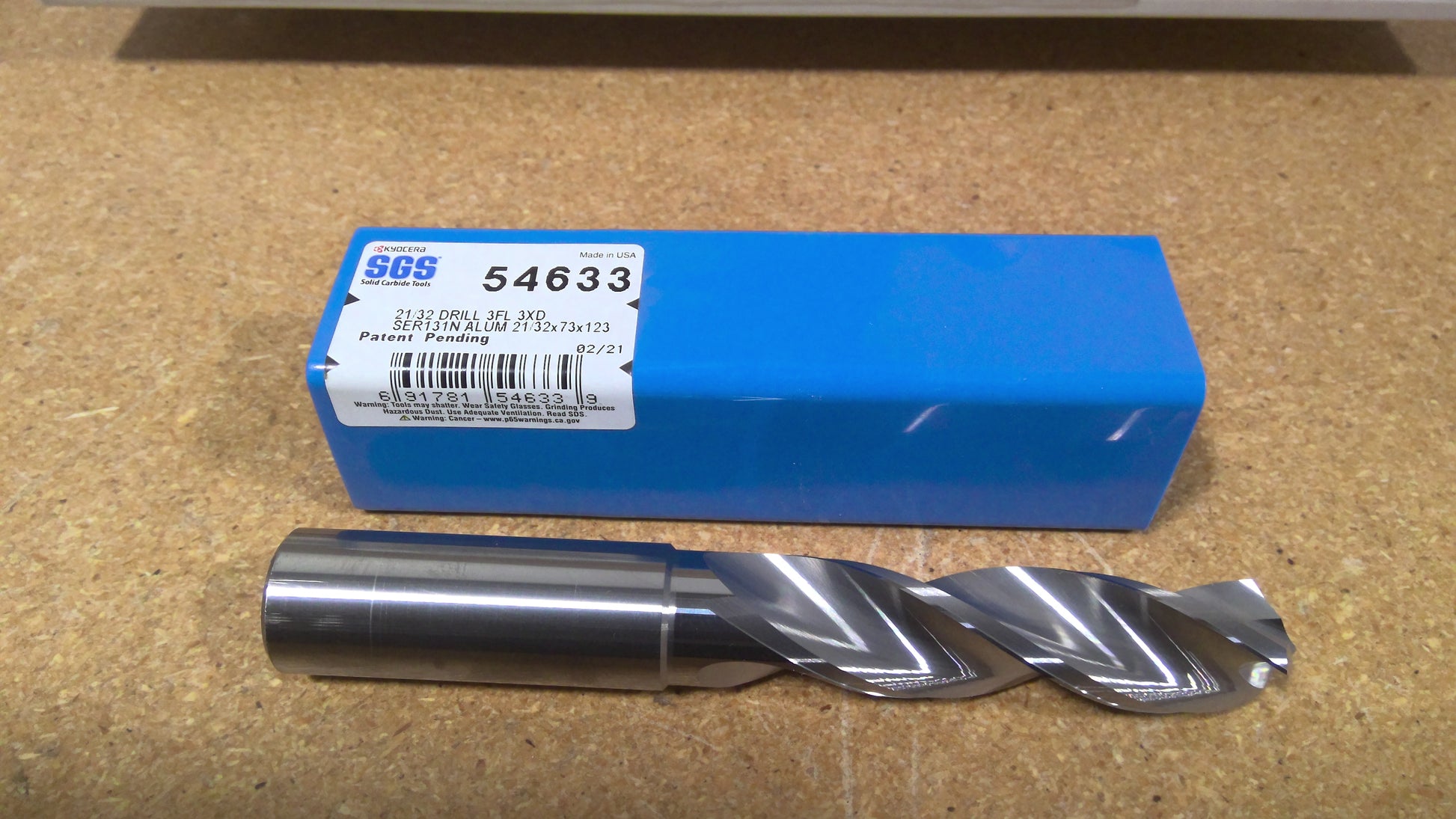

KYOCERA - 54633 - 3/4 DRILL 3FL 3XD SER131N ALUM
KYOCERA - 54633 - 3/4 DRILL 3FL 3XD SER131N ALUM
Regular price
$150.00 CAD
Regular price
Sale price
$150.00 CAD
Unit price
/
per
Couldn't load pickup availability
21/32" (.6562") 3 Flute Carbide 3xD Stub Length Drill, 18mm Shank, 2.8740" Flute, 4.8425" 123mm OAL, 124° Point. SGS Hi-PerCarb Series 131N, Bright Finish Uncoated For Aluminum & Non-Ferrous
Technical Details
Manufacturer - KYOCERA SGS PRECISION TOOLS
Manufacturer Part Number - 54633
Length Of Flute - 2.8740"
Overall Length - 4.8425" 123mm
Shank Diameter - 0.7087" 18mm
Number Of Flutes - 3
Drill Point Angle - 124°
Drill Type - Stub Length Drill
Helix Angle - 30°
Tool Coating - Bright Finish
Tool Substrate Material - Carbide
Primary Application - Aluminum and Non-Ferrous Materials
Hand Cutting Direction - Right Hand Cutting
Material Food Group - (N), Also (K), (S)
Inch Or Metric - Inch
Country of Origin - U.S.A.
Hand Helix Direction - Right Hand Helix
Series - 131N
Shank Type - Common Shank
Drill Diameter - 0.6562" 21/32"
Reach Multiple - 3xD
Coolant Through - No Coolant Holes
Depth Of Cut - 2.0079" 51.00mm
Helix Type - Right Hand Spiral
