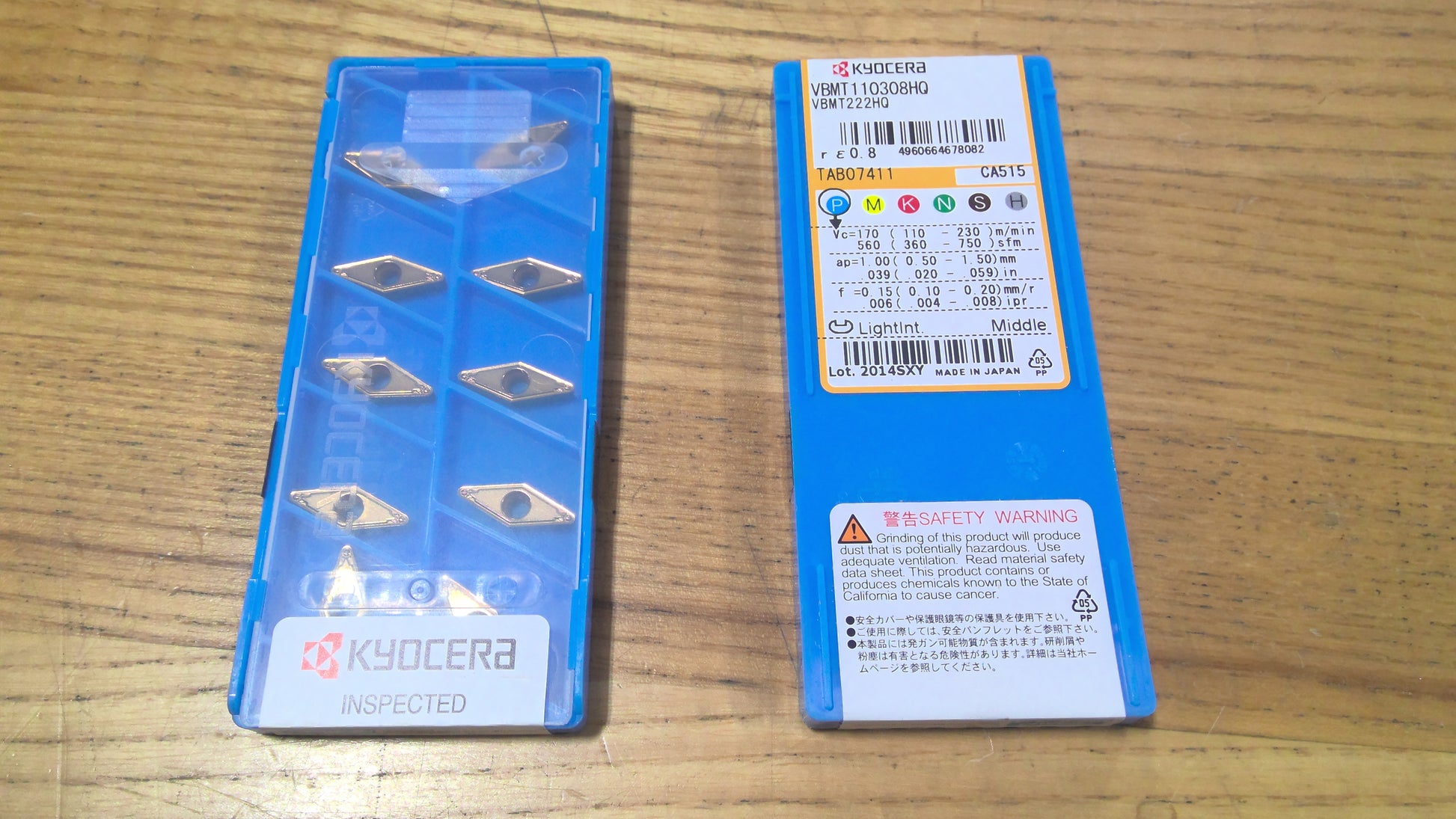

KYOCERA - VBMT222HQCA515 - CARBIDE INSERTS - PACK OF 10
KYOCERA - VBMT222HQCA515 - CARBIDE INSERTS - PACK OF 10
Regular price
$75.30 CAD
Regular price
Sale price
$75.30 CAD
Unit price
/
per
Couldn't load pickup availability
Dimensions
| Insert Size | 222 |
| Corner Radius | 2 |
| Mounting Hole Dia. | 0.110" |
| Insert Thickness | 0.1250" |
| Nose Radius | 0.0313" |
| Thickness | 2 |
Details
| Item | Diamond Turning Insert |
| Insert Shape | Diamond |
| Insert Style | VBMT |
| Inscribed Circle | 2 |
| Chip-Breaker | Yes |
| Grade | CA515 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | Positive |
| ISO Number | VBMT110308HQ |
| For Use With | Toolholders, Boring Bars |
| Stainless (M) Compatibility | No |
| Coating | TiCN/Al2O3/TiN |
| Non Ferrous (N) Compatibility | No |
| Cast Iron (K) Compatibility | No |
| Hardened (H) Compatibility | No |
| No. of Edges | 2 |
| Workpiece Compatibility | Steel (P) |
| Super Alloy (S) Compatibility | No |
| Steel (P) Compatibility | Yes |
| ANSI Number | VBMT222HQ-CA515 |
| Mounting Style | Clamp |
| Relief Angle | 5 Degrees |
| Cutting Direction | Neutral |
| Primary Material Application | Steel |
| Finish - Machining | TiCN+Al2O3+TiN |
| Number of Cutting Edges | 2 |
| Clearance Angle | 5 Degrees |
| Shape | Rhombic |
| Cutting Application | Turning |
| Material - Machining | Carbide |
| Chip-Breaker Style | Molded, On One Side |
| Primary Material Application ISO Code | P |
| Included Angle | 35 Degrees |
| ANSI Code | VBMT222HQ CA515 |
| Insert Holding Type | Screw |
| Chip-Breaker Code | HQ |
| Features | Improved Wear Resistance and Stability |
| Measurement System | Fractional Inch |
| Manufacturer Grade | CA515 |
| Material | Carbide |
