ALLEN BRADLEY - 809-A02E - RELAY CURRENT INSTANTANEOUS TRIP

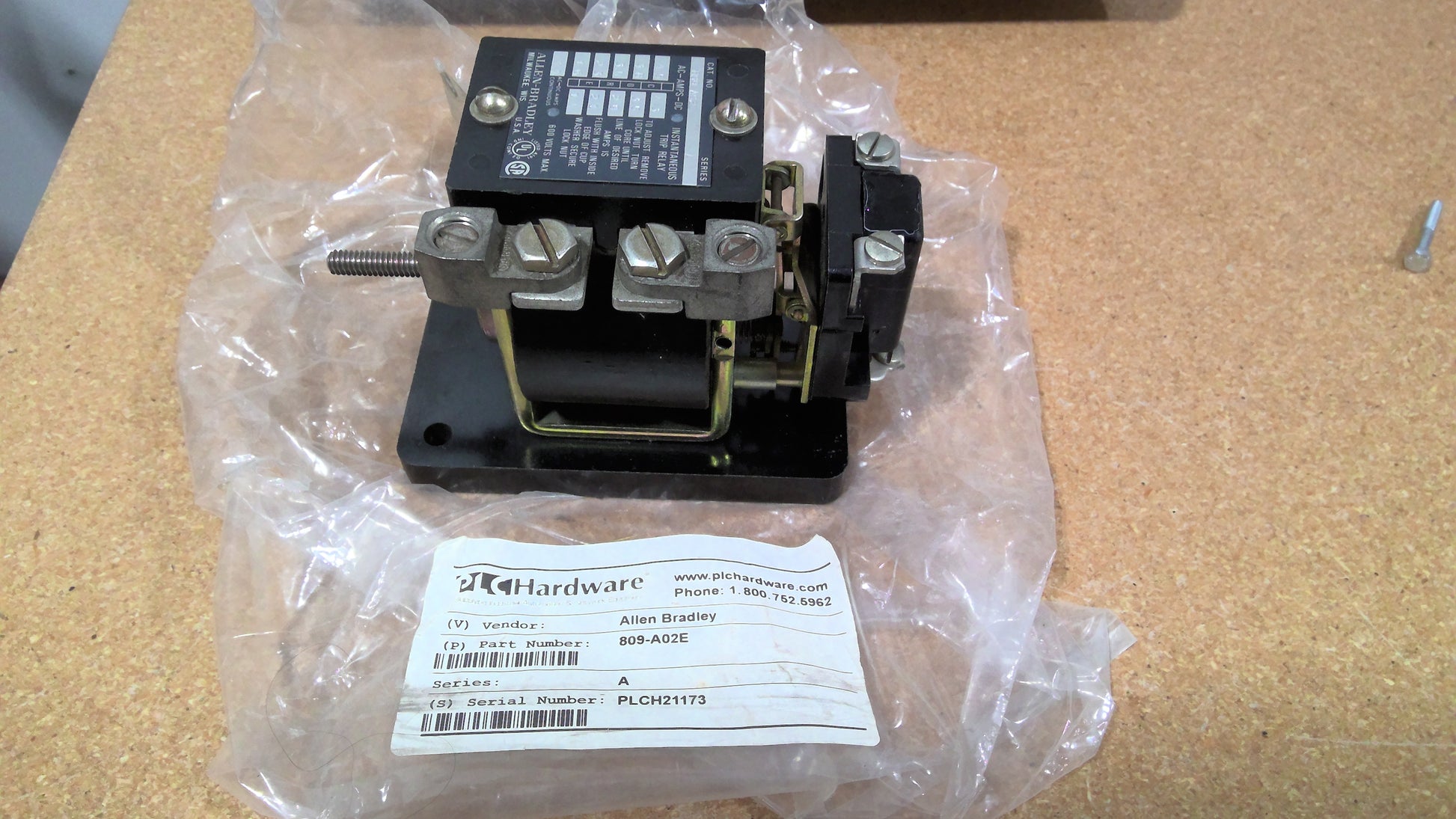

Allen Bradley 809-A02E Instantaneous Trip Relay

Cat. #: 809-A02E

Series: A
Amps. (AC): 4.5, 3.8, 3.0, 2.3, 1.6,

Amps. (DC): 4.3, 3.5, 2.9, 2.1, 1.4

Continuous Amps: 3.0 (AC/DC)
Max Volts: 600

Control Circuit Ratings:

AC Volts: 120-600
Make: 3600 VA
Break: 360 VA
Nema: B600

809A02E

DISCONTINUED BY MANUFACTURER 2010-02-27

CURRENT RELAY

INSTANTANEOUS TRIP

3 A MAXIMUM

CONTINUOUS

1 NORMALLY OPEN OUTPUT

AUTOMATIC RESET
